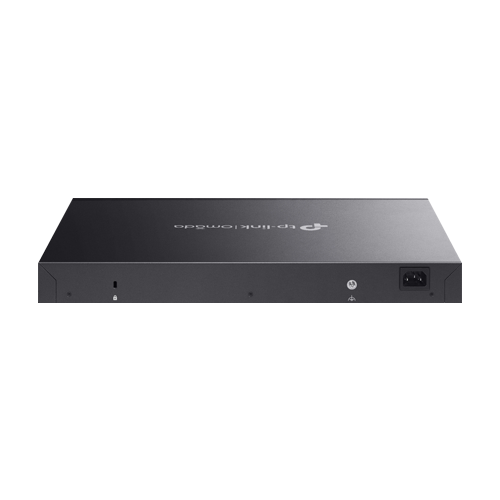

Switch L2+, 40 x RJ45 1G PoE+, 8 x RJ45 1G Hi-PoE, 4 x SFP+ 10G, Management, 1U – TP-Link Omada SG3452XMPP

Switch-ul are urmatoarele caracteristici cheie:

• 4× sloturi 10 Gbps SFP+;
• 8× porturi Gigabit PoE++ (standard 802.3af/at/bt) cu buget maxim de 90 W pentru fiecare port;
• 40× porturi Gigabit PoE+ (standard 802.3af/at) cu buget maxim de 30 W pentru fiecare port;
• Buget total PoE de 750 W;
• Management centralizat in cloud prin web sau aplicatia Omada;
• Management independent prin web, CLI, SNMP si RMON;
• Routare statica pentru directionarea traficului intern si sporirea eficientei;
• VLAN, ACL, QoS, IGMP Snooping, OAM si DDM;
• ERPS sustine protectie si recuperare rapida intr-o topologie tip ring;
• Carcasa metalica durabila si design montabil in rack.

Producator: TP-Link Omada
Numar porturi PoE: 48 x RJ45 Gigabit (8 x Hi-PoE 40 x PoE+)
Alimentare: 100-240V AC
Temperatura operare: 0°C ~ +40°C
Dimensiuni: 440 mm x 330 mm x 44 mm 1U
Buffer: 12 Mb
Standarde: IEEE 802.3i/u/ab/z/ae/af/at/bt
Capacitate switch: 176 Gbps
Porturi Uplink: 4 x SFP+ 10G
Packet Forwarding Rate: 130.94 Mpps
MAC address table: 16K
Jumbo frame: 9 KB
Putere PoE: total 750W port 1-8: 90W/port port 9-48: 30W/port
Memorie flash: 32 MB
Memorie DRAM: 512 MB
Consum: max. 913.4W
Interfata consola: 1 x RJ45 1 x Micro-USB
„
