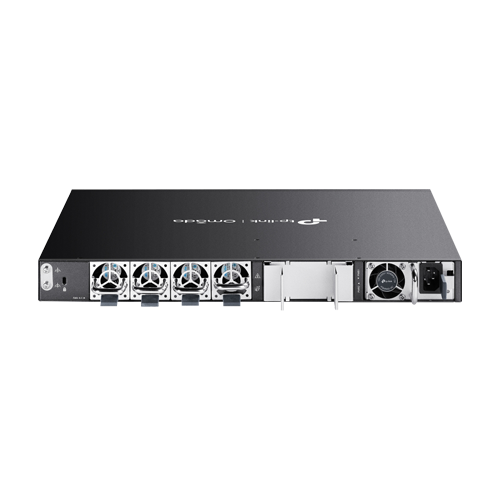

Switch L3, 48 x RJ45 1G PoE, 6 x SFP+ 10G, 2 x surse, Management, 1U – TP-Link Omada SG6654XHP

Switch-ul are urmatoarele caracteristici cheie:

• 48× porturi Gigabit RJ45 si 6× sloturi 10 Gbps SFP+;
• Buget PoE total de pana la 1440W;
• Phisical stacking de pana la 8 unitati pentru redundanta si performanta;
• Functii L3: RIP, OSPF, ECMP, VRRP, PIM-DM, PIM-SM si DHCP Server/Relay;
• Strategii de securitate: ACL, Port Security, Aparare DoS, 802.1X;
• Disponibilitate ridicata cu doua surse de alimentare interne fixe, VRRP si ERPS;
• Managementul centralizat in cloud prin intermediul controller-ului Omada SDN;
• Management independent prin web, CLI, SNMP si RMON.

Producator: TP-Link Omada
Numar porturi PoE: 48 x RJ45 Gigabit
Capacitate switch: 216 Gbps
Alimentare: 100-240V AC (2 x module hot swappable)
Temperatura operare: -5°C ~ +45°C
Dimensiuni: 440 mm x 420 mm x 44 mm 1U
Packet Forwarding Rate: 160.7 Mpps
MAC address table: 32K
Jumbo frame: 9 KB
Memorie flash: 2 x 4 MB NOR + 8 GB EMMC
Memorie DRAM: 4 GB DDR4
Procesor: Dual-Core ARM 1.5GHz
Interfata consola: 1 x RJ45 1 x USB-C
Interfata USB: 2 x USB 2.0
Buffer: 3 MB
Consum: max. 1767.7W
Porturi Uplink: 6 x SFP+ 10G
Putere PoE: max. 384W/764W/812W/1176W/1440W (in functie de surse)
„
